MOBILE MAINTENANCE SOLUTIONS
STURDY DECK
Mobile, Adjustable & Fixed
Height Work Platforms
Our Sturdy Deck product line was launched in 2017 to meet expanding industry needs for more heavy duty work platform options.
All Sturdy Deck models are 500 lb rated, and tested to 1000 lbs. They fold flat for easy transport, and are OSHA, ANSI & CSA compliant. Sturdy Decks feature a range of height options, anti-slip perforated deck surfaces, and powder-coated safety gates.
Sturdy Decks are available as fixed height work stands with extendable leg options, or mobile work platforms at fixed or adjustable heights with locking wheel options.
Explore our Sturdy Deck product offerings below, or request a quote for a customized recommendation.
STURDY DECK PRODUCTS
OVERHOOD MAINTENANCE
Our fixed 61" height mobile Sturdy Decks are a heavy duty, stable maintenance platform designed specifically for working around heavy vehicles such as trucks and RVs, and fit over class C engine covers including 5500 chassis.
Specifications:
-
61" deck height
-
Three deck sizes available:
-
8'L x 20'W / 9'L x 20'W / 9'L x 30'W deck options.
-
-
Anti-slip perforated deck surface
-
6" locking wheels with anti tip footprint extenders.
-
Frame legs fold under deck for easy transport
-
Handrail on one deck side
-
Safety orange powder coated handrail gates
-
Vehicle side anti scratch deck padding.
-
Type 1 250 lb capacity ladder access
ADJUSTABLE HEIGHT MOBILE
Reach from 51" to 82" with our adjustable height mobile Sturdy Decks. We designed these heavy duty and stable maintenance platform models specifically for working alongside and for reaching over the hoods of heavy vehicles such as trucks and RVs.
Three different length models are available: The 9' & 10' deck length models are often supplied to RV dealers for windshield installs and to access over the hood areas. The 12' length model allows for a longer walkway with same over the hood access.
Specifications:
-
51" to 82" height range
-
Type 1 250 lb capacity extension ladder access
-
Frame legs fold under deck for easy transport
-
20" x 10' or 12' length models
-
Anti-slip perforated deck surface
-
Vehicle side anti scratch deck padding.
-
6" locking wheels with anti tip footprint extenders.
-
Safety orange powder coated gates for 3 sided protection
-
Tested to 1000 lbs weight capacity
-
Frame legs fold under deck for easy transport

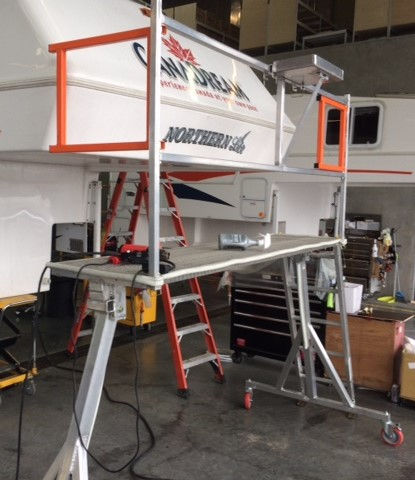

RV DETAILERS MODEL
With a fixed height of 73" this model is specifically designed to safely reach tall RV rooflines. Customizable with three deck length and width options that allow for easy navigation around tightly spaced work areas. Both frame legs fold under the deck for easy transport/storage, and the units fit over hoods and are easily rolled alongside work areas for all-around access.
Specifications:
-
Three deck size options:
-
8’ L x 20” W x 73” H
-
9' L x 20" W x 73" H
-
9' L x 30" W x 73" H
-
-
High tensile welded aluminum construction
-
Safety tread anti-slip deck surface
-
Frame lock pins
-
Deck padding
-
3 way railing with powder-coated gates
-
Upgradable 6” locking wheels.
-
Handrails include quick remove 1 1/2” aluminum tube handrails which insert with bolt assemblies or locking spring pins into welded handrail sleeves welded to deck.
-
Add a tool tray for a quick access organized work zone.
FIXED HEIGHT STANDS
Our fixed height Sturdy Decks stands are heavy duty folding work platforms for fixed deck heights, designed for applications where height adjustment isn't required. There are 27 different size models to choose from.
Specifications:
-
Available in heights from 2' to 6'
-
Available in lengths from 3' to 10'
-
500 lbs rated capacity
-
Narrow frame design: 20" wide deck
-
Anti-slip perforated dimple deck surface
-
1 deck side handrail with optional handrail gates.
-
Frame legs fold under deck for easy transport
Further customize your Sturdy Deck Fixed Height Stand with accessories such as extendable legs, deck padding, tool trays and handrail gates.
6H6L
5H5L
4H5L
Fold Flat
4H3L
3H3L
2H3
Height | 10' Length | 8' Length | 6' Length | 5' Length | 4' Length | 3' Length |
|---|---|---|---|---|---|---|
6' Height | 6H10L | 6H8L | 6H6L | 6H5L | ||
2' Height | 2H10 | 2H8 | 2H6 | 2H5 | 2H4 | 2H3 |
3' Height | 3H10L | 3H8L | 3H6L | 3H5L | 3H4L | 3H3L |
4' Height | 4H10L | 4H8L | 4H6L | 4H5L | 4H4L | 4H3L |
5' Height | 5H10L | 5H8L | 5H6L | 5H5L | 5H4L |
Deck End Gates Powder Coated DEG20
Extendable legs for uneven ground adjustable to 9" extra height EL4
Deck Padding permanent adhesive soft foam DP
